APA-rama Project. The APA-lachia Box

For my second APA box I wanted to try some mountain scenery. A simple cut or tunnel seemed too easy and boring to look at. I searched the internet for photos about trains in the mountains and found several showing a snow shed or avalanche shed. These structures protected the railroad tracks from downslides of snow and ice. Back in time they were build from wood, today they are mostly concrete.

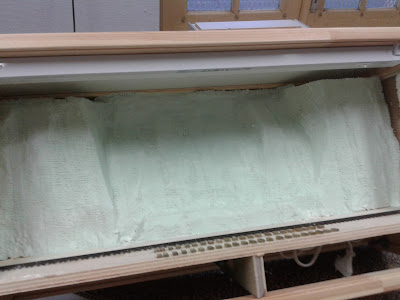

For this box I did not have to take care of a curved backdrop. I filled the rear of the box with pieces of extruded foam.

But first things first.

From the photos found on the internet and a article in Model Railroader Magazine I adapted the size and measurements to our HOn3 needs.

I figured out that I would need at least 22 bents for my snowshed. To make sure all were identical, I built a jig, the same time I assembled the first bent.

 Above is the finished jig after the first bent had been removed. I noted the different length for the scale lumber that I needed.

I cut the strip wood to size using my NWSL chopper and stained them in a mixture of 70% IPA (Isopropyl Alcohol) and a few drops of black India ink. I let the lumber dry overnight.

Then I labelled a compartment box with the different sizes and filled the lumber parts in. This made it very easy to find the right piece during the assembly stage.

I did the final sanding and trimming before assembling the different pieces to make sure that everything fitted tight. I also used some reversed clothes pins to hold the pieces in the jig until the glue had dried. To the right is a finished bent.

I test fitted the snowshed to mark the location of the footings.

I glued the footings to the baseboard. Then I covered the styrofoam with layers of plaster gauze to give a first shape to the rock face.

In the next step I ballasted the track and the surrounding areas including the footings

From rubber molds I cast different rocks and attached them to the plaster gauze base before they set completely. After a couple of minutes I removed the rubber molds.

After the molds had dried for a couple of days, I filled the cracks between the different castings with wet plaster.

I carved out the footings, were the snowshed would touch the hillside.

The rock faces start to look realistic.

After the plaster had dried again for a couple of days, I started to apply different washes. Ocre, burnt umber and black.

The black wash really brought out the cracks and crevices.

Still some work to do until you'll see it at the US-Convention in Rodgau/Germany on October 24/25, 2015. See you there!

APA-rama Project. The APA-looza Box

Two years ago, a bunch of modelers decided to attend the bi-annual US-Convention in Rodgau/Germany with an HOn3 layout, composed of some kind of shadow boxes with each having a different scene. The modelers should build a scene of their liking without having a direct relationship to the other scenes. The initiator of this idea, Alexander Lösch (www.frankenmodell.de) suggested that the scenes should fit into a box, manufactured by IKEA, for kids to to store their toys away. This little box (L70 x W36 x H29 cm) called APA, should frame the scene. The box is put up on the side, so we have a depth of 29 cm. How the box is modified for our purpose is described on Alex' homepage (APA-Box construction)

Above you see my partly finished southwestern scene, called APA-looza. We tried to include the word "APA" in the naming of our boxes.

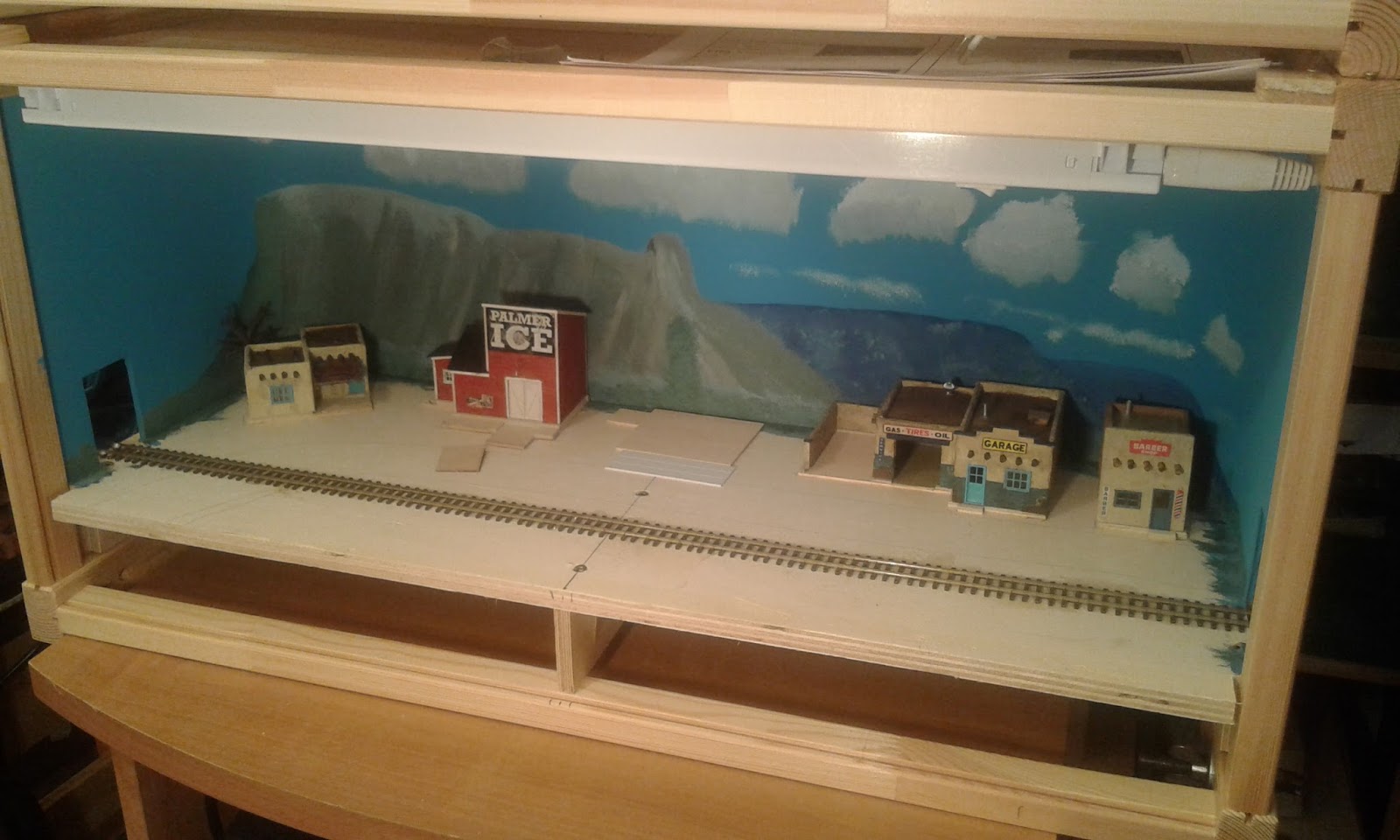

An obvious drawback with boxes is their squared appearance. I've cut a large sheet of styrene to fit into the box and curved it around the two rear corners. Then I tried my first hand on painting the backdrop. It should show some "mesas" in the distance to suit my adobe buildings and to give a southwestern atmosphere. In the picture above, I fiddled around with some of my finished models to see where they would fit best. I drew the outlines of the buildings on the base and added a foundation made from strip wood. This made the application of ground and scenery material easier.

Every box has its own light fixture, with a switch to turn it on or off. The power cord exits behind the backdrop. The roadbed is lifted 10 cm to leave enough space underneath for the feeder wires and track power. I need to attach the lid to the box with two hinges. It folds down for protection between show hours and for storing it at home or during transport.

For the trees I used sea weed and pieces of tree roots. The tree roots yield many nice looking, unique shaped tree armatures.

I sprayed the tree armatures with a coat of strong hairspray and sprinkled them with green flock. The medium green flock suggests that we're in Spring.

The adobe structures are all scratchbuilt with basswood and tile grout applied for the stucco finish. The Ice House is a lasercut kit from Fos Scale Models.

The following pictures show the almost finished scene. Power and Telegraph lines are missing, as well as some more small trees.

See this scene and another 12 in Rodgau on October 24/25, 2015
